 APOPHIS 1-6X28 FFP sight
 |
This CQB-slyle sight is effectively a hybrid between an open Red Dot and a telescopic tube sight (best of both). Fitted into a 35mm diametre short tube (just 196mm long / under 8"), it represents a super compact combat sight with long eye-relief, which allows the shooter to keep both eyes open at magx1 for close combat and at the same time allowing the increase of magnification quickly for longer shooting distances. Equipped with flip-up caps and tactical low profile mounting rings, Apophis also offers a choice of reticule illumination from Red to Green. Solid and robust design also allows the use with heavy recoil calibre rifles. Free items include one pair of 35m tactical low profile picatinny mount rings and Flip-up Caps

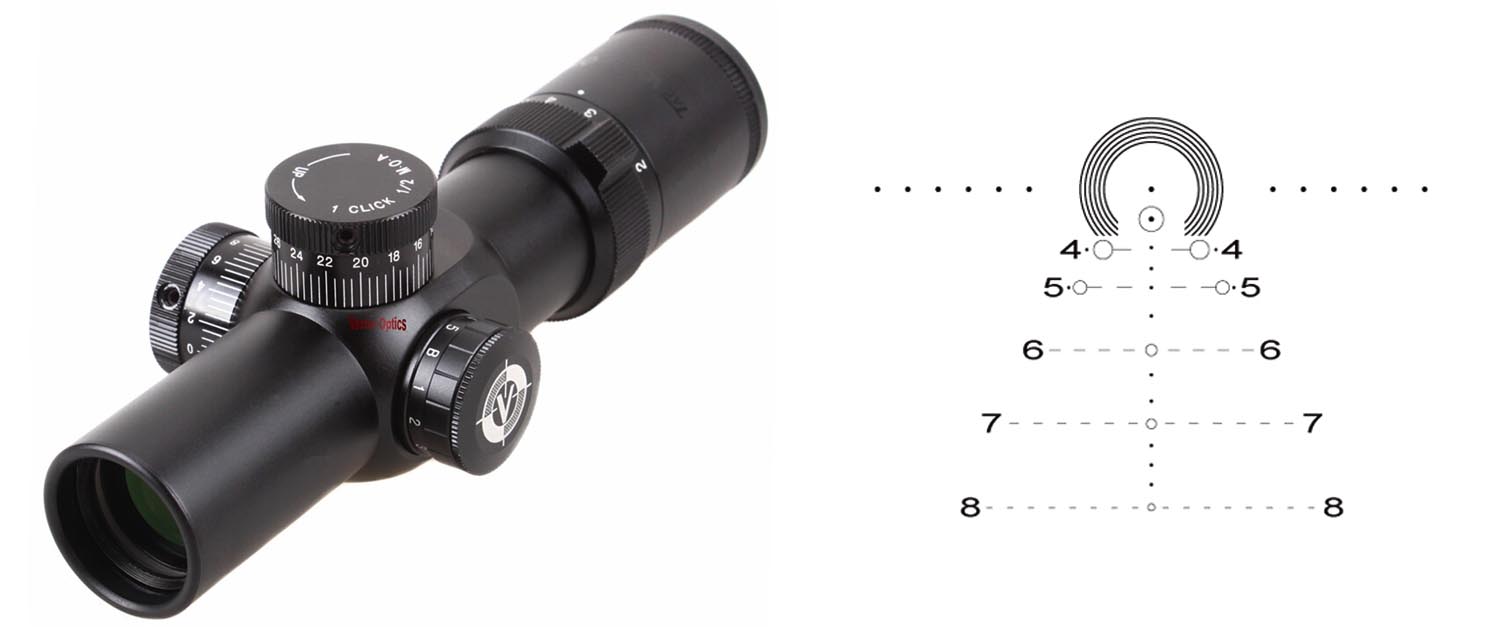

While most scopes have the reticle fitted in the second focal plane (SFP) - near the eyepiece, Apophis 1-6x28 has its reticules fitted in the first/front focal plane (FFP), which increase its size when magnification is changed from low to high. Bullet-drop correction reticules are calibrated for .223 (5.56x45) types (M4/AR15), but could be used for .22LR or any other caliber if re-measured on the range (150m max for .22LR)
|
|
SPECIFICATIONS |
|
| Magnification |
1-6x |
| Objective Lens Dia |
28mm |
| Ocular Lens Dia |
32mm |
| Ocular Length |
49.6mm |
| Exit Pupil |
4.6-15.0 mm |
| Length, (Super Compact) |
196mm (7.7") |
| Weight (net) |
510g (18.0 ounce) |
| Eye Relief |
89-140 mm (3.5-4.5") |
| Field of View |
17.6-105.8 (ft@100yds) |
| Field of View |
5.9-35.3 (M@ 100M) |
| Field of View |
3.4-20° (@100yds) |
| Number of Lens |
14 |
| Optics Coating |
Fully-multi coated crystal sharp clear |
| Side Focus Range |
10 Yard to unlimited |
| Reticule |
M4-62 Range Etched Tactical Glass Reticle |
| Evevation Range |
400 MOA |
| Windage Range |
400 MOA |
| Illumination |
5 levels green and red |
| Battery |
CR2032 |
| Tube |
35mm Hammer-forged Monotube |
| Adjustment |
1/2 M.O.A |
Features:
• Shock proof (1000g), Water Proof (at 300mm and 54 degree) and Fog Proof (Nitrogen filled)
• High quality aluminum alloy in durable black matte finish
• 1/2 M.O.A direct finger windage and elevation turrets adjustments with audible clicks for greater precision
• Fast focus eyepiece at ocular lens adjustment (diopter from -3 to 2) |
|
