POSP 3-9x42 1000m rangefinding sniping sight / POSP 4-12x42

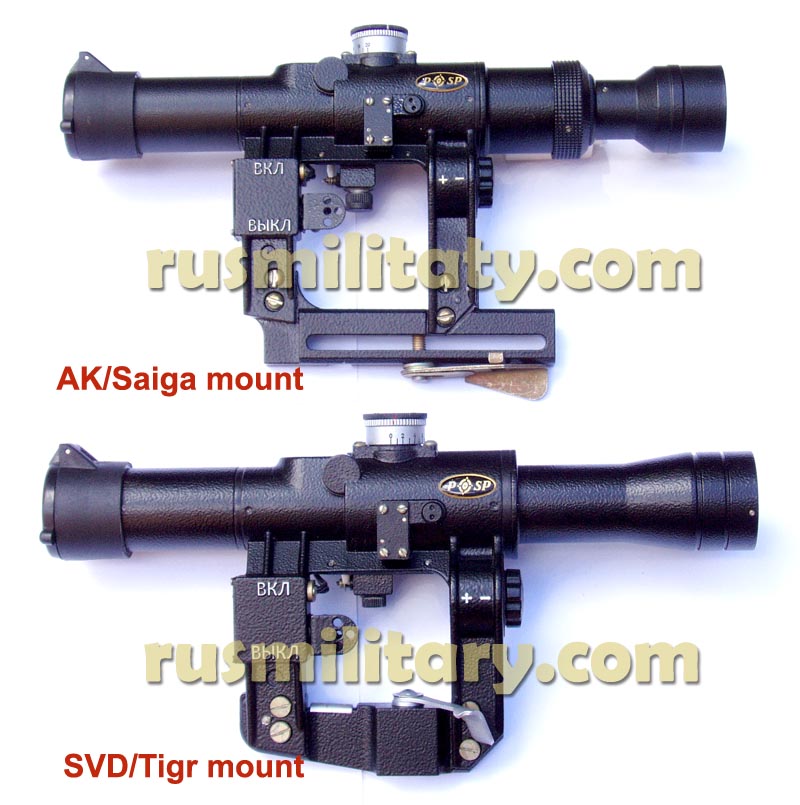

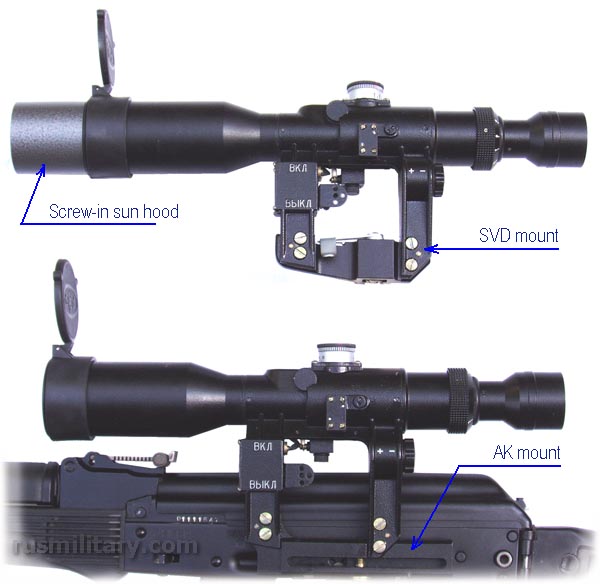

The latest zoomed POSP 3-9X42 has a variable magnification from 3 to 9. The scope has magnesium alloy body, which is finished in black. The reticules are illuminated in red, making the contrasting reticule line free of glow, which allows it to be used in dusk conditions. Aiming chevrons designed to adjust for bullet drop of both 7.62x39 and 7.62x54 rounds. Eg: when the upper mark is zeroed for 100m the lower chevrons will compensate for bullet drop at 200m, 300m, 400m & 500m respectively (when used on AK) or when the upper chevron is zeroed at 900m, the lower chevrons will aim at 1000, 1100, 1200 & 1300 metres (when used on SVD). More detailed instruction manuals come with each scope, which comes in waterproof pouch with rubber eyepiece, screw-in sunhood & manuals, 12 months warranty. All scopes are modified for one 2L76 3V battery. Pls specify mount type when ordering: LOWER for SVD-TIGR / HIGHER for AK-Saiga
.
SPECIFICATIONS
Mountable on
AK / SVD
AK / SVD
Type
3-9x42
4-10x42
Magnification
3 - 9
4 - 10
Operating temperature
-50'C / +50'C
-50'C / +50'C
Field of vision @ 1000m
80-40m
119-60m
Eye relief, mm
100 - 75
105 - 80
Eye relief diameter, mm
10 - 3.9
10 - 3.3
Rangefinding ret
Yes
No
Powered by
2L76 (3V)
2L76 (3V)
Weight, kg
0,85
0,9
Length, cm
32
36
PRICE
£00-00
£00-00
SOLD OUT >>
ACCESSORIES
LED bulb (red)
£14-95
LED bulb (green)
£14-95
LED bulb (white)
£14-95
LED bulb (yellow)
£14-95



A minute of angle (MOA) is 10cm at 100 metres (or 1m at 1000m). Rangefinding works by placing the target (1.5m = 5' - 5'11" - average human height or 0.5m - machine-gunner) between the horizontal and the top reclining line with numbers. On the reclining line locate the number closest to the point where the target touches the line and multiple that by 100 and this will give you the distance to the target in metres (1 metre = 1.11 yards)
