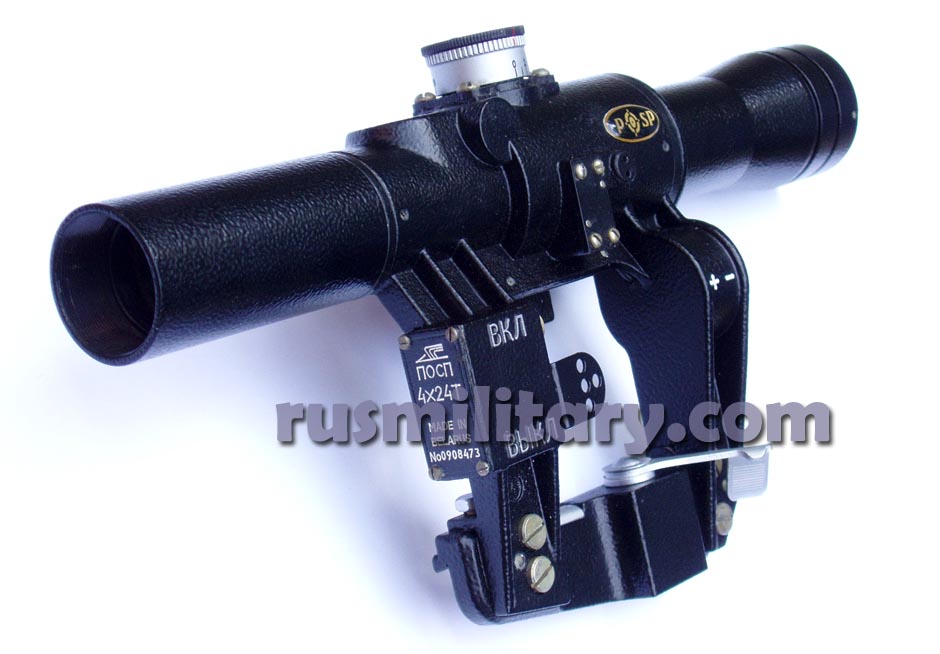

POSP 4X24 / 6x24 sniping sights

Current military issue POSP (PSO) series is modified for Energiser 2L76 3V battery. Compact and solidly built, the scope has magnesium alloy body, which is finished in black. The reticules are illuminated in red, making the contrasting reticule line free of glow, which allows it to be used in dusk conditions. All models are nitrogen-filled to prevent lens fogging, waterproof and come with 400m or 1000m rangefinding reticules. Since the range calibrations on both AK (7.62x39) and SVD (7.62x54) are measured in equal amounts of MOA, the reticules can be used for both calibers as well as on Saiga / Vepr / Yunker air rifles or any other wepon with siderail mounting system. POSP sights come in waterproof pouch with rubber eyepiece & manuals, 12 months warranty. Pls specify mount type when ordering: LOWER for SVD-TIGR / HIGHER for AK-Saiga

_  SPECIFICATIONS

_Mountable on
20mm rail
AK / SVD
AK / SVD
_Type
4x24W
4x24V
6x24V
_Magnification
4
4
6
_Operating temperature
-50'C/+50'C
-50'C/+50'C
-50'C/+50'C
_Field of vision @ 100M
7m
7m
6.3m
_Eye relief, mm
68
68
68
_Powered by
CR2032 (3V)
2L76 (3V)
2L76 (3V)
_Weight, kg
0.56
0.75
0.9
_Length, cm
26
26
26
_PRICE
£229-00
£239-00
£239-00

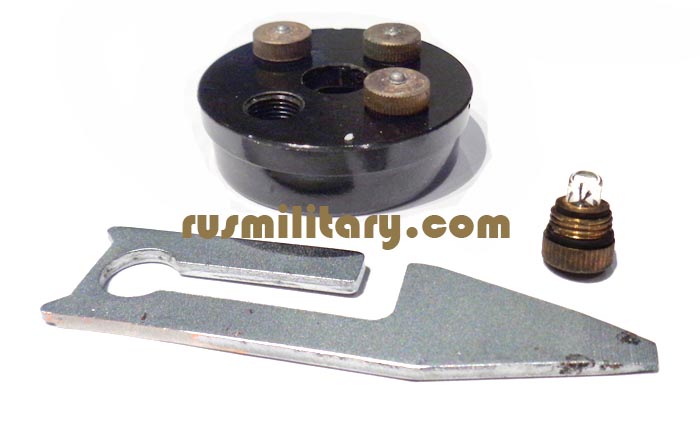

_ACCESSORIES
_Spare battery
£ 5-95
_LED bulb (red)
£12-95
_LED bulb (green)
£12-95
_LED bulb (white)
£12-95
_LED bulb (yellow)
£12-95



All three POSPs have the same minute of angle (MOA), which 10cm at 100 metres (or 1m at 1000m). Rangefinding works by placing the target (1.5m - 1.8m = 5' - 5'11" - average human height or 0.5m - machine-gunner) between the horizontal and the top reclining line with numbers. On the reclining line locate the number closest to the point where the target touches the line and multiple that by 100 and this will give you the distance to the target in metres (1 metre = 1.11 yards). Aiming chevrons designed to adjust for bullet drop of both 7.62x39 and 7.62x54 rounds. Eg: when the upper mark is zeroed for 100m the lower chevrons will compensate for bullet drop at 200m and 300m respectively (POSP 4x24) or when the upper chevron is zeroed at 1000m, the second and third chevrons will aim at 1100 and 1200 metres. With POSP 8x42 the lower chevrons would compensate for bullet drop at 1000, 1100, 1200 & 1300 metres, if the upper mark is zeroed for 900m. More detailed instruction manuals come with each scope
